ViroReact is a platform for developers to rapidly build native cross platform AR/VR applications using React Native.

Whether you are looking to build a new AR/VR application, or add AR/VR features to your existing applications, the ViroReact platform enables you to create powerful mobile AR/VR applications using a single code base. Write once, run everywhere!

Start Developing

In this example, we will display an application that renders a basic 3D Model of a chair in AR.

1. Create a new expo project

npx create-expo-app

2. Open the directory in terminal

3. Install `ViroReact`

npm install --save @viro-community/react-viro

4. Add Expo Config Plugin

In App.json, add `react-viro` to the plugins section

{
  "plugins": [
    [
      "@viro-community/react-viro",
      {
        "androidXrMode": [
          "GVR",
          "AR",
          "OVR_MOBILE"
        ]
      }
    ]
  ]
}

5. Add Camera Permissions

For iOS, add this code to `app.json` in the ‘ios’ key

{
  "ios": {
    "infoPlist": {
      "NSCameraUsageDescription": "$(PRODUCT_NAME) uses the camera for AR functionality"
    }
  }
}

6. Create and configure Metro Config.

Create a metro.config.js file in your project directory with the following contents. We are adding the extensions "glb" and "vrx" to list of assets.

// Learn more https://docs.expo.io/guides/customizing-metro
const { getDefaultConfig } = require("expo/metro-config");

/** @type {import('expo/metro-config').MetroConfig} */
const config = getDefaultConfig(__dirname);

config.resolver.assetExts.push(
	// Adds support for `.vrx`
	"vrx"
);

config.resolver.assetExts.push(
	// Adds support for `.glb`
	"glb"
);
config.resolver.assetExts.push(
	// Adds support for `.gltf`
	"gltf"
);
module.exports = config;

7. Generate native code

expo prebuild

8. Build and run application

Make sure to run the application on a physical device as ViroReact is not supported on Simulators

expo run:ios

9. Edit your App.js/tsx file to add the below code

import React, { useState } from "react";
import { StyleSheet } from "react-native";
import {
	ViroARScene,
	ViroText,
	ViroTrackingStateConstants,
	ViroARSceneNavigator,
	ViroNode,
	ViroAmbientLight,
	ViroSpotLight,
	ViroScene,
	Viro3DObject,
} from "@viro-community/react-viro";

const HelloWorldSceneAR = () => {
	const [text, setText] = useState("Initializing AR...");

	function onInitialized(state, reason) {
		console.log(state, reason);
		if (state === 3) {
			setText("Hello World!");
		} else if (state === ViroTrackingStateConstants.TRACKING_NORMAL) {
			// Handle loss of tracking
		}
	}

	return (
		<ViroARScene onTrackingUpdated={onInitialized}>
			<ViroText
				text={text}
				scale={[0.1, 0.1, 0.1]}
				height={1}
				width={4}
				position={[0, 0.5, -1]}
				style={styles.helloWorldTextStyle}
			/>

			<ViroAmbientLight color={"#aaaaaa"} />
			<ViroSpotLight
				innerAngle={5}
				outerAngle={90}
				direction={[0, -1, -0.2]}
				position={[0, 3, 1]}
				color="#ffffff"
				castsShadow={true}
			/>

			<Viro3DObject
				source={require("./assets/modern_chair.glb")}
				position={[0, -0.5, -1]}
				scale={[0.4, 0.4, 0.4]}
				type="GLB"
				dragType="FixedDistance"
				onDrag={() => {}} // allows user to drag 3D object around with finger
			/>
		</ViroARScene>
	);
};

export default () => {
	return (
		<ViroARSceneNavigator
			autofocus={true}
			initialScene={{
				scene: HelloWorldSceneAR,
			}}
			style={styles.f1}
		/>
	);
};

var styles = StyleSheet.create({
	f1: { flex: 1 },
	helloWorldTextStyle: {
		fontFamily: "Arial",
		fontSize: 56,
		color: "#ffffff",
		textAlignVertical: "center",
		textAlign: "center",
	},
});

Note: When starting the expo development server, you have to use

expo start --dev-client

If you run into the following issue while building iOS

No such module 'ExpoModulesCore'

Open the .xcworkspace inside `ios` directory in Xcode and from Project settings, remove arm64 from excluded architectures

Reference: Github Issue

And that's it, we now have a chair rendered in AR inside an Expo application. The same codebase can run on Android, iOS as well as Web.

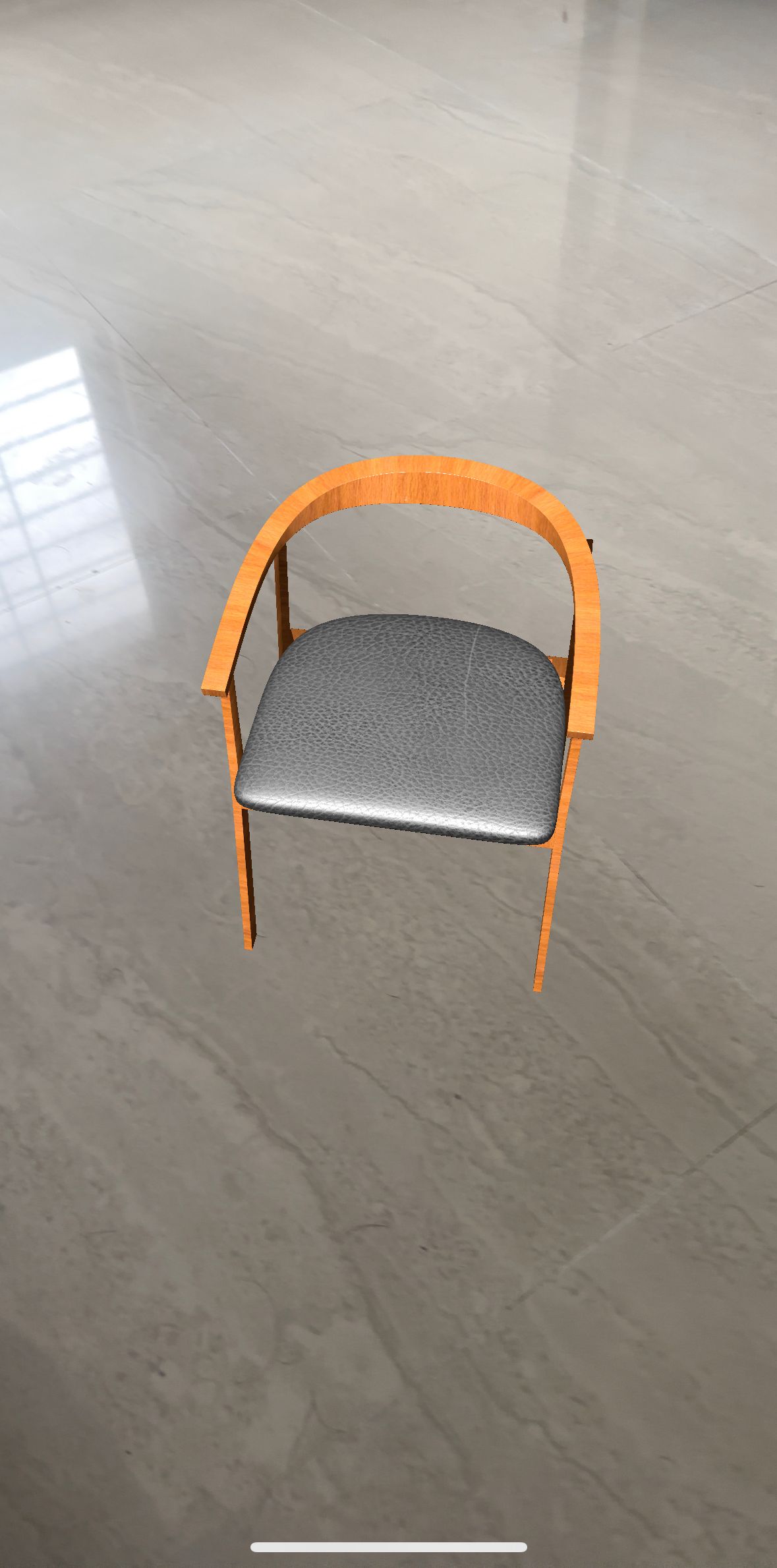

Here's the result:

Next Steps

Now that you have an AR Application working with Expo, you can implement custom AR Scenes and Object models using components available in react-viro.

Checkout the documentation here.
